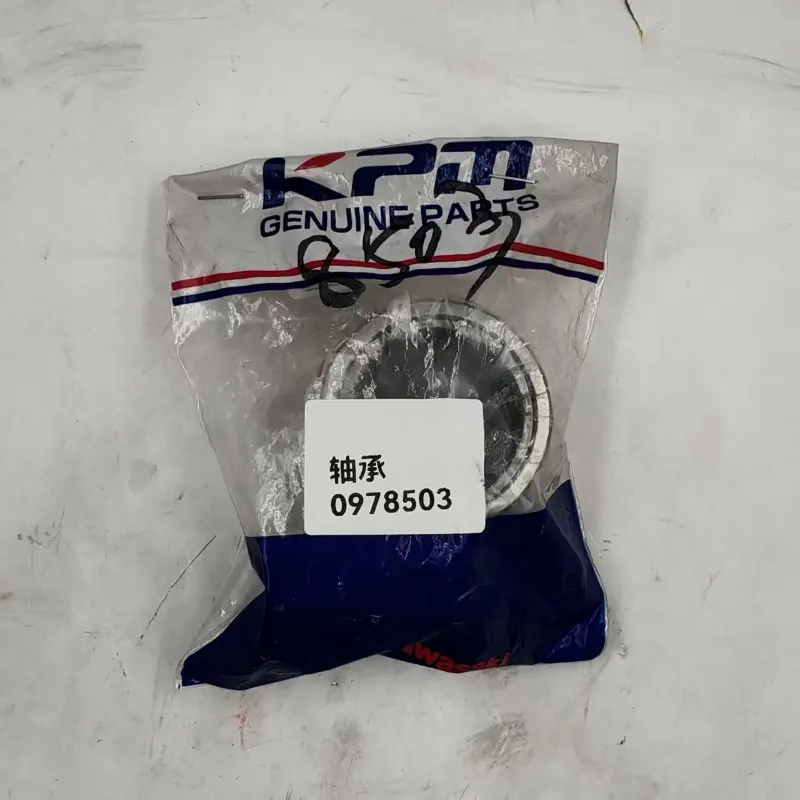

Good Price Excavator Needle Bearing 0978503 for ZX450 ZX470

Part Name:	Needle Bearing
Part Number:	0978503
Brand:	HITACHI
Country of Origin	Japan
Application:	Excavators
Delivery Time:	1 to 3 working days
Packing:	Carton Box
Warranty:	6 months
After-sales Service	Quick response, problem solved within 24h

Packing Information:
Length(cm)	11
Width(cm)	9
Height(cm)	6
Weight(kg)	0.3

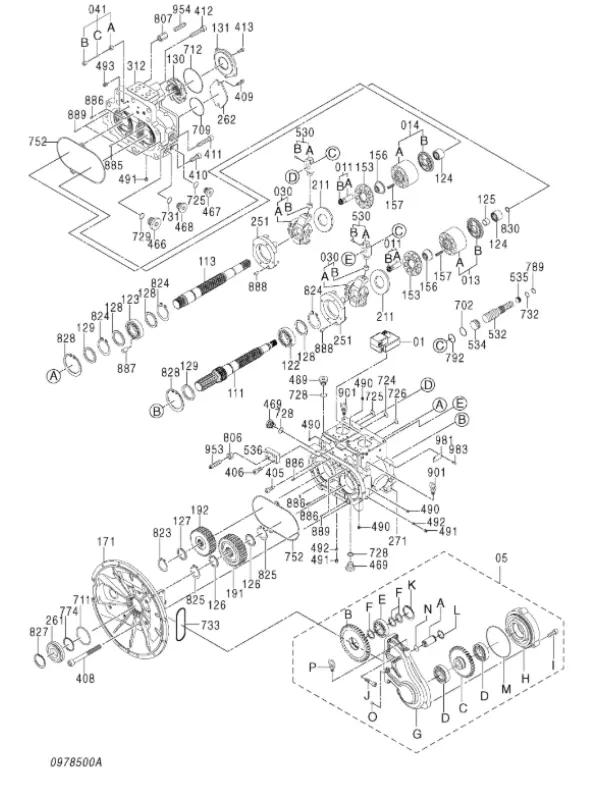

Parts on group PUMP;PISTON:
Pos.	Part No	Qty	Parts name	Comments
	4633472	[1]	PUMP;PISTON
1	4658831	[2]	REGULATOR;PUMP
5	4654554	[1]	UNIT
05A.		[1]	SHAFT
05B.		[1]	GEAR
05C.		[1]	GEAR
05D.	0978517	[2]	BRG.;BALL
05E.	0878107	[1]	BRG.;ROL.
05F.	0818508	[3]	SPACER
05G.		[1]	CASE
05H.		[1]	CASE;GEAR
05I.	0195126	[3]	BOLT;SOCKET
05J.	M341236	[8]	BOLT;SOCKET
05K.	988850	[1]	RING;RETAINING
05L.	446751	[1]	RING;RETAINING
05M.	0978512	[1]	O-RING
05N.	0443404	[1]	O-RING
05O.		[2]	PIN
05P.	4091248	[1]	BOLT;EYE
11	0820401	[2]	PISTON ASS’Y
011A.		[9]	PISTON
011B.		[9]	SHOE
13	0820402	[1]	CYL. ASS’Y
013A.		[1]	BLOCK;CYL.
013B.		[1]	PLATE;VALVE
14	0451003	[1]	CYL. ASS’Y
014A.		[1]	BLOCK;CYL.
014B.		[1]	PLATE;VALVE
30	0772701	[2]	PLATE ASS’Y
030A.		[1]	PLATE
030B.		[1]	BUSHING
41	0708004	[2]	VALVE;CHECK ASS’Y
041A.		[1]	SEAT
041B.		[1]	STOPPER
041C.		[1]	BALL;STEEL
111	0978501	[1]	SHAFT
113	0820406	[1]	SHAFT
122	0820407	[1]	BRG.;ROL.
123	0820453	[1]	BRG.;ROL.
124	0978503	[2]	BRG.;NEEDLE
125	0978504	[1]	RING;INNER
126	0820409	[2]	SPACER
127	0820410	[1]	SPACER
128	0820411	[3]	SPACER
129	0820412	[2]	SPACER
130	0978505	[1]	BOOSTER
131	0820414	[1]	COVER
153	0820415	[2]	RETAINER
156	0820416	[2]	BUSHING
157	0451016	[18]	SPRING
171	0978518	[1]	CASING	I 0978519
171	0978519	[1]	CASING
191	0820418	[1]	GEAR;DRIVE
192	0820419	[1]	GEAR
211	0451018	[2]	PLATE
251	0820420	[2]	SUPPORT
261	0978507	[1]	COVER
262	0820422	[1]	COVER
271	0978508	[1]	CASING
312	0978509	[1]	COVER
405	0978510	[8]	BOLT;SOCKET
406	M341236	[8]	BOLT;SOCKET
408	0131103	[11]	BOLT;SOCKET
409	0820425	[2]	BOLT;SOCKET
410	0820426	[9]	BOLT;SOCKET
411	0820427	[2]	BOLT;SOCKET
412	0820428	[1]	BOLT;SOCKET
413	M341025	[5]	BOLT;SOCKET
466	0978511	[2]	PLUG
467	0629404	[2]	PLUG
468	0626901	[2]	PLUG
469	0697911	[3]	PLUG
490	0263019	[20]	PLUG
491	0451028	[12]	PLUG
492	0451027	[4]	SCREW
493	0102440	[2]	PLUG
530	0820438	[2]	PIN ASS’Y
530A.		[2]	PIN
530B.		[2]	PIN
532	0820429	[2]	PISTON;SERVO
534	0451031	[2]	STOPPER
535	0820430	[2]	STOPPER
536	0820431	[2]	COVER
702	0451033	[2]	O-RING
709	0694604	[2]	O-RING
711	0820432	[1]	O-RING
712	0820433	[1]	O-RING
724	0443801	[9]	O-RING
725	4297379	[2]	O-RING
726	0443405	[2]	O-RING
728	0443408	[5]	O-RING
729	0719402	[2]	O-RING
731	0443407	[2]	O-RING
732	0451035	[2]	O-RING
733	0978512	[1]	O-RING
752	0820439	[2]	PACKING
774	0820443	[1]	SEAL;OIL	I 0978520
774	0978520	[1]	SEAL;OIL
789	0451036	[2]	RING;BACK-UP
792	0451037	[2]	RING;BACK-UP
806	0451038	[2]	NUT
807	0820434	[2]	NUT
823	959499	[1]	RING;RETAINING
824	991345	[3]	RING;RETAINING
825	488075	[2]	RING;RETAINING
827	991728	[1]	RING;RETAINING
828	0820435	[2]	RING;RETAINING
830	0978513	[1]	RING;RETAINING
885	0313404	[2]	PIN
886	0244604	[4]	PIN;SPRING
887	0175240	[1]	PIN
888	0978514	[2]	PIN
889	0978515	[4]	PIN
901	0134458	[2]	BOLT;EYE
953	0978516	[2]	SCREW;SET
954	0682328	[2]	SCREW;SET
981		[1]	PLATE
983	0625509	[2]	PIN

Compatible equipment models:

ZR260HC ZX470H-3-HCMC ZX470R-3F ZX520LCR-3 ZX450-3 ZX470H-3F ZX500LC-3 ZX520LCR-3F ZX450-3F ZX450LC-3-DH ZX470H-3 ZX470LC-5B ZX500LC-3F ZX470LCH-5B ZX470R-3 ZX520LCH-3 ZX520LCH-3F
