Original HITACHI Excavator Track Link Assembly (38L) 9156477 for ZX70

Part Name:	Track-Link Assembly
Part Number:	9156477
Brand:	HITACHI
Country of Origin	Japan
Application:	Excavators
Delivery Time:	1 to 3 working days
Packing:	Carton Box
Warranty:	6 months
After-sales Service	Quick response, problem solved within 24h

Inquire Now Contact Us

Product Category

Introduction

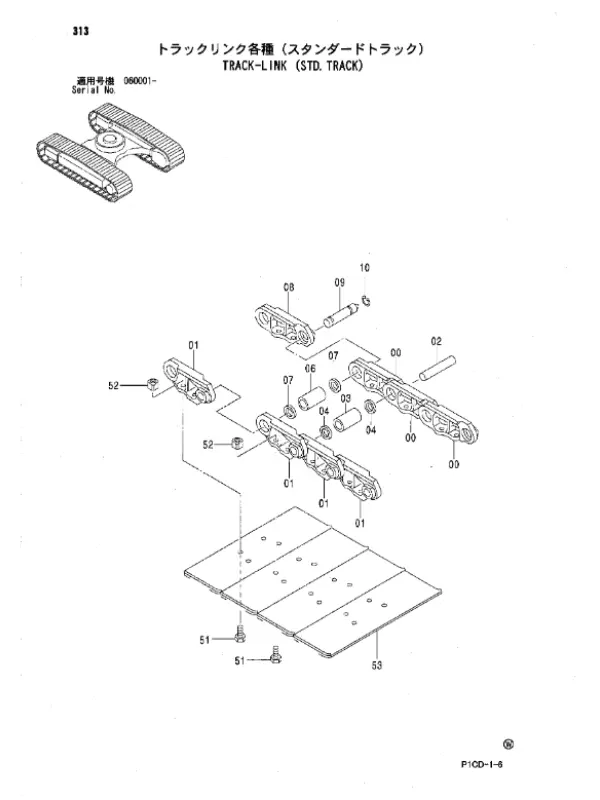

Parts on group TRACK-LINK (STD.TRACK):
Pos.	Part No	Qty	Parts name	Comments
	9156477	[2]	TRACK-LINK ASS’Y	(450G)
	9164594	[2]	TRACK-LINK ASS’Y	(600G)
	9164600	[2]	TRACK-LINK ASS’Y	(450F)
	9164602	[2]	TRACK-LINK ASS’Y	(500A)
	9164604	[2]	TRACK-LINK ASS’Y	(700A)
00-10.	9156478	[1]	TRACK-LINK ASS’Y
0	1023762	[37]	TRACK-LINK;B
1	1023763	[38]	TRACK-LINK;B
2	4378885	[37]	PIN
3	3077925	[37]	BUSHING
4	4453704	[74]	SEAL;DUST
6	3077926	[1]	BUSHING;MASTER
7	4378888	[2]	COLLAR
8	4382097	[1]	TRACK-LINK;M
9	4382098	[1]	PIN;MASTER
10	4382100	[1]	RING
51	4378884	[152]	BOLT;SHOE	(450G,600G)
51	4262586	[152]	BOLT;SHOE	(450F)
51	4167784	[152]	BOLT;SHOE	(500A,700A)
52	4262587	[152]	NUT
53	2040402	[38]	SHOE;GROUSER	(450G)
53	2041367	[38]	SHOE;GROUSER	(600G)
53	2041377	[38]	SHOE;FLAT	(450F)
53	2041369	[38]	SHOE;TRIANGLE	(500A)
53	2041373	[38]	SHOE;TRIANGLE	(700A)

Compatible equipment models: EX60-5(LC) EX60BUN-5 FPC1700 ZX70-3 ZX70-3-HCME ZX70-HHE ZR125HC ZX80LCK ZR240JC ZX80LCK-3 ZX70 ZX80SB-HCME
